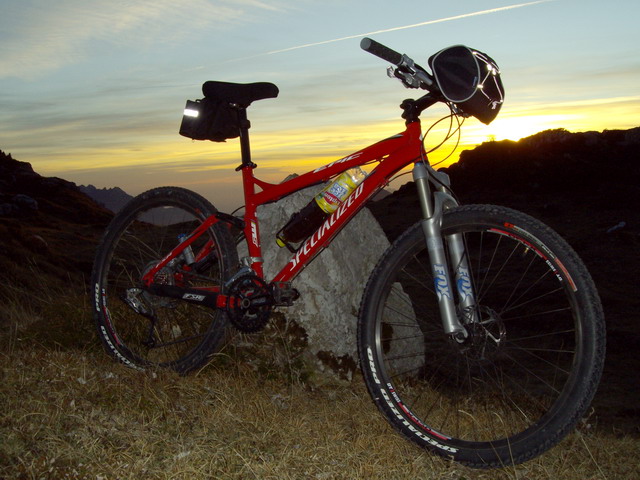

Specialized EPIC COMP 2007

TELAIO Epic FSR M5 alloy, fully manipulated frame w/ ORE DT/TT, hollow alloy shock link, sealed cartridge bearings, 100mm travel, replaceable derailer hanger
AMMORTIZZATORE POSTERIORE Specialized Fox Brain Fade, adjustable from HT firm to Trail Tune, air spring, rebound adjust
FORCELLA

Fox F100 RL 100mm, air spring, rebound/compression adj w/ lock out, alloy steerer.

Manuale 2004

Manuale 2005

SERIE STERZO 1 1/8" Threadless, alloy cups w/ 10mm insertion, sealed cartridge bearing
ATTACCO MANUBRIO Specialized adjustable rise, OS 31.8, 3D forged w/CNC finish
MANUBRIO Specialized XC low rise 31.8mm OS bar, 2014 butted alloy, 6 degree up, 8 degree backsweep, 620mm width
NASTRO / MANOPOLE Specialized MTB, dual density
FRENO ANTERIORE Avid Juicy 5, hydraulic disc, G2 Clean Sweep S/M: 160mm rotor, L/XL: 180mm rotor. Manuale
FRENO POSTERIORE Avid Juicy 5, hydraulic disc, G2 Clean Sweep 160mm rotor
LEVE FRENO Avid Juicy 5
DERAGLIATORE ANTERIORE Shimano M581 LX, 34.9mm clamp, bottom swing, dual pull
CAMBIO POSTERIORE SRAM X.9, 9-speed, long cage
COMANDI SRAM X-7, aluminum trigger 9-speed
CASSETTA/RUOTA LIBERA Shimano HG50, 9-speed, 11/34t
CATENA SRAM PC-951 w /Power Link
GUARNITURA Truvativ Stylo, 2pc crank/BB
INGRANAGGI 22S/32A/44A 4mm thick outer, 4 bolt 104/64mm
MOVIMENTO CENTRALE Truvativ GXP, sealed outboard cartridge bearing
PEDALI Shimano M-520 SPD
CERCHI DT Custom for Specialized X430, 24mm w/eyelets, 32h
MOZZO ANTERIORE Specialized Stout disc, sealed cartridge bearing, high/low flange, 32h
MOZZO POSTERIORE Shimano M-525 disc, 32h, alloy QR
RAGGI DT Swiss 1.8mm stainless, black, alloy nipples
PNEUMATICO ANTERIORE Specialized Fast Trak Pro 26x2.0", aramid bead, dual compound
PNEUMATICO POSTERIORE Specialized Fast Trak Pro 26x2.0", aramid bead, dual compound
CAMERE D'ARIA Specialized Ultralight 26x2.0", presta
SELLA Specialized BG Rival, hollow Cro-Mo rails
REGGISELLA 2014 butted alloy, black, 30.9 x 350/400mm
COLLARINO 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
NOTE Protective clear coat, derailleur hanger, reflectors, owners manual

Size S M L XL
Seat Tube Length, Center to Top 394mm 444mm 483mm 533mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Top Tube Length (Actual) 538mm 572mm 597mm 624mm
Chainstay Length 427mm 427mm 427mm 427mm
Bottom Bracket Height Low/Short 331mm 331mm 331mm 331mm
Bottom Bracket Height Low/Mid 74mm 74mm 74mm 74mm
Bottom Bracket Height Low/Long 70.5mm 70.5mm 70.5mm 70.5mm
Bottom Bracket Height High/Short 1058mm 1094mm 1120mm 1149mm
Bottom Bracket Height High/Mid 749mm 753mm 760mm 774mm
Bottom Bracket Height High/Long 100mm 110mm 120mm 150mm
Seat Tube Angle Low/Short 640° 640° 640° 640°
Seat Tube Angle Low/Mid 75° 90° 105° 120°
Seat Tube Angle Low/Long 170° 175° 175° 175°
Seat Tube Angle High/Short 350° 350° 400° 400°
TT is measured horizontally from center of HT to center of ST
