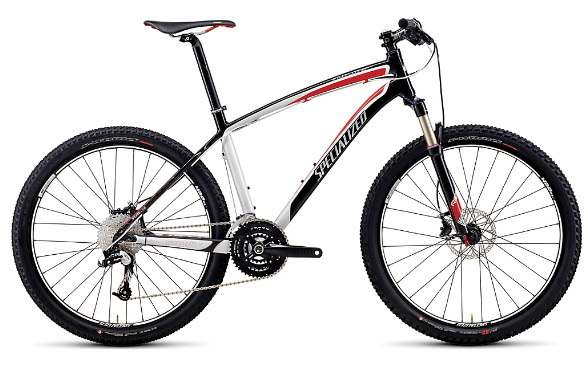

Specialized Stumpjumper HT comp 2011



specialized stumpjumper



ATTACCO MANUBRIO

Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise

CAMBIO POSTERIORE

SRAM X.9, 10-speed, long cage

CAMERE

Ultralight presta valve

CASSETTA

Shimano HG81, 10-speed, 11-36t

CATENA

KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates

CERCHI

Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h

COLLARINO

34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black

COMANDI

SRAM X.7, 10-speed, aluminum trigger

DERAGLIATORE ANT.

SRAM X.7, 10-speed, 34.9 clamp mount, top pull

FORCELLA

RockShox Reba RLT, tapered alloy steerer, compression and rebound adj. LO w/external floodgate adj., standard drop-outs, 90mm travel

FRENO ANTERIORE

Custom Avid Elixir R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metallic pads, stainless hardware, G3 Clean Sweep rotor, 160mm rotor

FRENO POSTERIORE

Custom Avid Elixir R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metallic pads, stainless hardware, G3 Clean Sweep rotor, 15.5/17.5: 140mm, 19/21: 160mm rotor

GUARNITURA

Custom SRAM S-1250, 7050 alloy arms, 10-speed triple, GXP spindle, 15.5: 170mm, others: 175mm

INGRANAGGI

44A x 33A x 22A, 4-bolt, 104/64mm

LEVE FRENO

Custom Avid Elixir R SL hydraulic, tool-less reach adj.

MANOPOLE

Specialized lock-on, S/M: Grappler, Other: Rocca

MANUBRIO

Specialized XC flat bar, 6061 butted alloy, 660mm wide, 8 degree back sweep, 31.8mm

MOVIMENTO CENTRALE

SRAM GXP, outboard bearing

MOZZO ANTERIORE

Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 28h

MOZZO POSTERIORE

Specialized Hi Lo disc, laser-etched logo, double sealed cartridge bearing, QR, 32h

NOTE

Protective clear coat, derailleur hanger, reflectors, owners manual

PEDALI

Resin Test Ride Pedals with toe clips, CEN std.

PNEUMATICO ANT.

S-Works "The Captain", 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0"

PNEUMATICO POST.

S-Works Fast Trak LK, 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0"

RAGGI

DT Swiss Champion 1.8mm (15g) stainless

REGGISELLA

2014 butted alloy, single bolt setback, 30.9mm, 15.5/17.5": 350mm, others: 400mm

SELLA

Specialized BG Phenom Comp, hollow Cr-Mo rails, 143mm width

SERIE STERZO

1-1/8" upper and lower campy style cartridge bearings for integrated alloy HT

TELAIO

M5 fully manipulated alloy, curved TT, SS w/ disc brake mount



    Pneumatici 2Bliss ready: S-Works The Captain 2.0" anteriore e S-Works Fast Trak LK 2.0" posteriore.Freni a disco idraulici Avid Elixir R SL. Pastiglie semi-metalliche per una frenata potente e modulabile.

Geometria

  15.5 17.5 19 21
LUNGHEZZA PIANTONE C/F 394mm 445mm 483mm 533mm
LUNGHEZZA TUBO ORIZZONTALE VIRTUALE 555mm 590mm 615mm 640mm
LUNGHEZZA TUBO ORIZZONTALE REALE 538mm 567mm 590mm 614mm
LUNGHEZZA BATTICATENA 424mm 424mm 424mm 424mm
ALTEZZA MOVIMENTO CENTRALE - LOW 304mm 304mm 304mm 304mm
ANGOLO SELLA REALE - LOW 73° 73° 73° 73°
ANGOLO STERZO - LOW 70.5° 70.5° 70.5° 70.5°
INTERASSE 1034mm 1070mm 1096mm 1122mm
ALTEZZA STANDOVER 741mm 780mm 811mm 846mm
LUNGHEZZA TUBO STERZO 120mm 140mm 160mm 180mm
LARGHEZZA MANUBRIO 660mm 660mm 660mm 660mm
LUNGHEZZA ATTACCO MANUBRIO 75mm 90mm 105mm 105mm
LUNGHEZZA PEDIVELLA 170mm 175mm 175mm 175mm
LUNGHEZZA REGGISELLA 350mm 350mm 400mm 400mm
STACK 574mm 592mm 611mm 630mm
REACH 380mm 409mm 428mm 447mm
GROUND-TOP 878mm 896mm 915mm 934mm
